9" x 18" Hy-C Stainless Chimney Cap

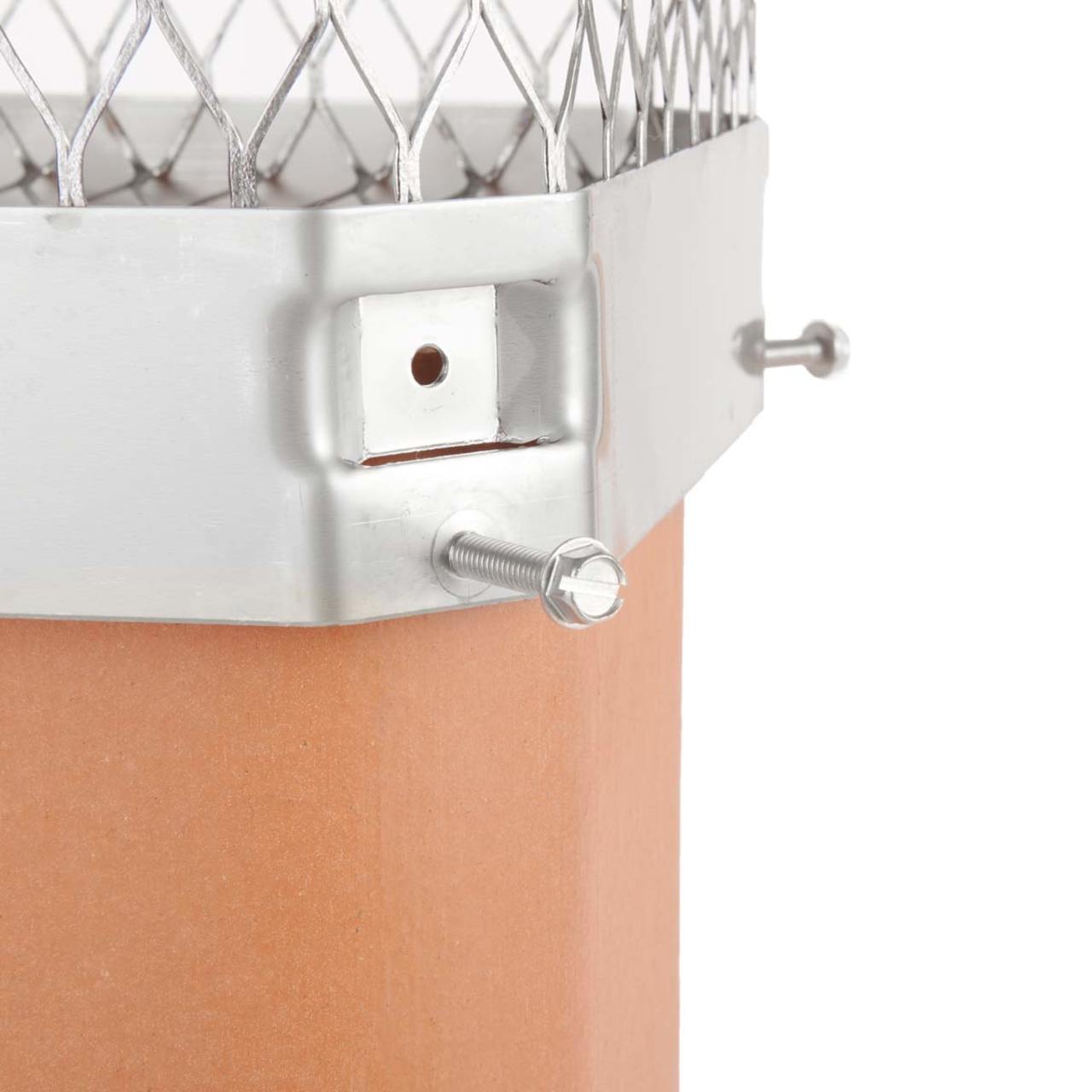

HY-CHy-C Stainless Chimney Cap 9" x 18" - The first thing you'll notice about the Hy-C Cap is its unique corner installation feature. The slotted hex-head mounting bolts are indented into the base to give the cap an even, secure grip against the flue tile. You'll also notice how the lower edges of the mesh screen are folded inward. This gives a complete, firm base resting on the flue tile - you won't see any critters climbing under this cap. The Hy-C Cap is constructed of 100% 304 Stainless Steel. It has a 24-ga. single-piece top with smooth, rolled edges and an 18-ga. 3/4" mesh, 6 1/2" high screen.
If your chimneys tile liner does not extend up at least 1" then you will also need the HY-C Leg Kit.
WARNING: This product can expose you to chemicals including creosotes, which are known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harmFor more information go to http://www.P65Warnings.ca.gov.
Specifications:
- 9" x 18" Base size
- 16" x 25" lid dimension
- 6 1/2" High, 3/4" mesh screen
- Fits outside tile dimensions 7 1/2" x 16 1/2" to 9 1/4" x 18 1/4"
- 304 Stainless steel construction
- Unique corner installation
- Smooth rolled edges
- _PDF:
- Draft-King-Single-Flue-Instructions|pdf|Draft-King-Single-Flue-Instructions
- Clearance:
- Non-Clearance
- Country Of Origin:
- United States
- Fits Lengths From:
- 16.5 Inch
- Fits Lengths From:
- 18.5 Inch
- Fits Lengths From:
- 17 Inch
- Fits Lengths From:
- 17.5 Inch
- Fits Lengths From:
- 18 Inch
- Fits Widths From:
- 7.5 Inch
- Fits Widths From:
- 9 Inch
- Fits Widths From:
- 9.5 Inch
- Fits Widths From:
- 8 Inch
- Fits Widths From:
- 8.5 Inch
- Mesh Height:
- 6.5 Inches
- Product Type:
- Chimney Caps
- Pipe Piece:
- Chimney Cap
- Mesh:
- 3/4in Mesh
