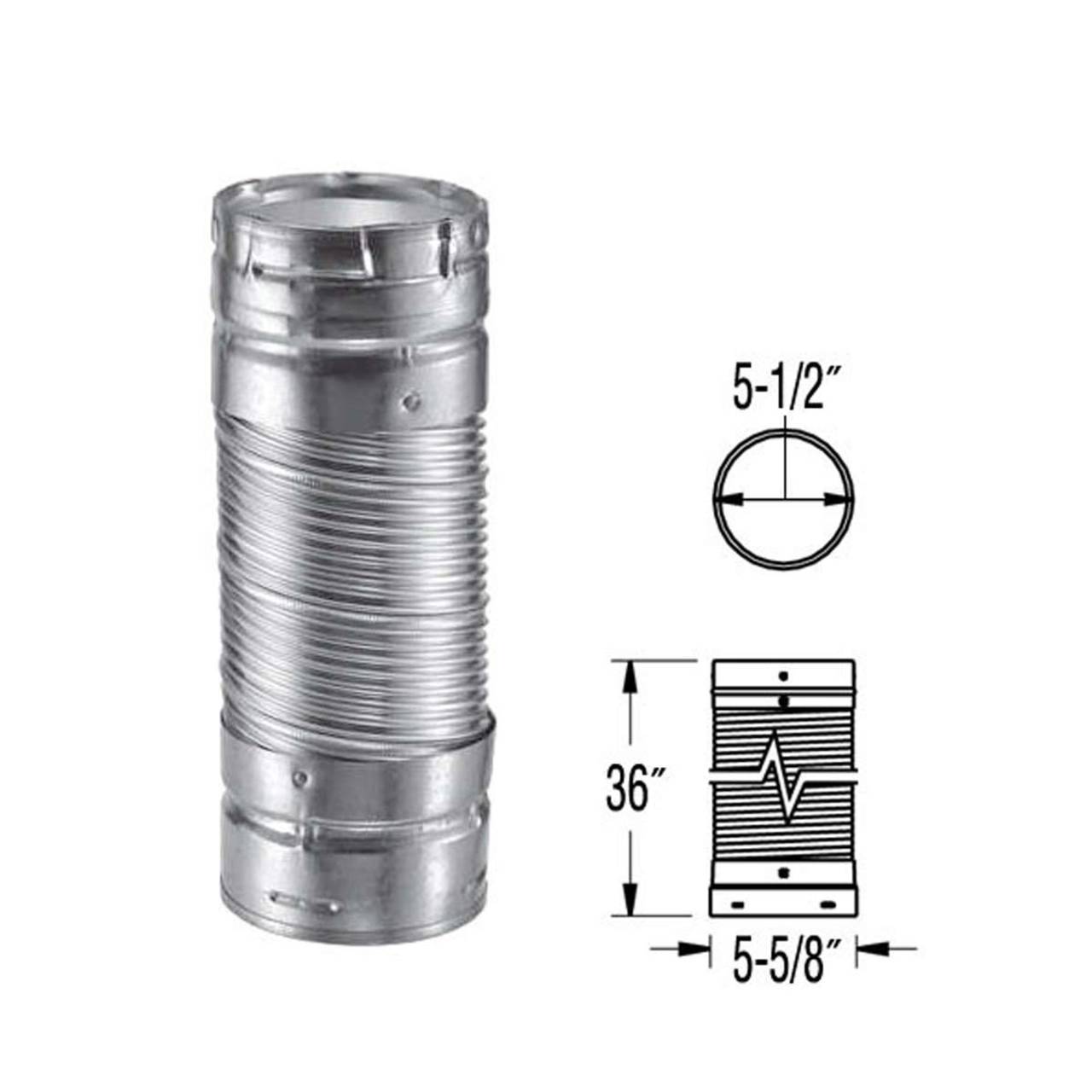

5'' x 36'' DuraLiner Round Flex Chimney Relining Pipe - 5DLR-36F

Built form .016", 304 stainless steel, the Flex Pipe can be used through damper and smoke shelf area. Features twist-lock fittings which eliminates field cutting and fitting. Use with DuraLiner Two-Ply Insulation Sleeve for zero clearance applications.

See all 5" DuraLiner Chimney Components.

Additional Information:

DuraLiner is a high-temperature, insulated double-wall masonry relining system for use with appliances fueled by gas, pellet, oil, wood, or coal. It safely protects masonry chimneys from the damaging effects of flue product condensation. DuraLiner ensures safe and efficient venting of heating appliances. It is the only factory-insulated product with zero/zero clearance for high heat wood-burning appliances. No need to uncoil flex, insulate a majority of the pipe, or protect the insulation when installing. A smooth liner means less creosote buildup.

  Installation Instructions

WARNING: This product can expose you to chemicals including Chromium, which is known to the State Of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
Specifications:

• Diameter: 5"
• Construction materials: 1-ply construction, .005 304 stainless steel
• Clearance: 1" clearance to masonry. Zero clearance with insulation
• Listings: UL Listed to UL 1777 (MH14420), ULC Listed to ULC S640 (CMH1329)
• Factory insulated with a 0.5" insulation blanket
• Use through damper and smoke shelf area
• Use DuraLiner Two-Ply Insulation Sleeve to meet UL1777 zero-clearance standards
• Twist-lock fittings

Built form .016", 304 stainless steel, the Flex Pipe can be used through damper and smoke shelf area. Features twist-lock fittings which eliminates field cutting and fitting. Use with DuraLiner Two-Ply Insulation Sleeve for zero clearance applications. See all 5" DuraLiner Chimney Components .

  Manufacturer's Limited Lifetime Warranty
